| Remarks:1.The above design and specifications are subject to change without prior notice for product improvement. |
Midea 1.5 Ton Duct |
Midea 1.5 Ton Duct Type AC | |
| Air Conditioner Type | DUCT |
| Function | Cooling |
| Cooling Capacity | 18000 BTU/hr ; |
| Compressor | Scroll |
| Refrigerant | R-410A |
| SPECIFICATION | |||||||
| Model | MHC-24CR | MHC-48CR | MHC-60CR | MTB1T-96CWN1 | MTA-120CRN1 | ||
| Power supply | Ph-V-Hz | 220-240V,1Ph,50Hz | 380-415V,3Ph,50Hz | 380-415V,3Ph,50Hz | 380-415V,3Ph,50Hz | 380-415V,3Ph,50Hz | |
| Cooling | Capacity | Btu/h | 26000 | 48000 | 60000 | 96000 | 119400 |
| Input | W | 2700 | 5200 | 6930 | 9600 | 12000 | |
| Rated current | A | 12.75 | 12.00 | 10.35 | 22.5 | ||
| EER | W/W | 2.82 | 2.71 | 2.54 | 2.93 | 2.92 | |
| Max. input consumption | W | 3700 | 6500 | 8500 | 15800 | 17300 | |
| Max. input current | A | 18 | 12 | 13 | 26.8 | 28.6 | |
| Compressor | Type | ROTARY | ROTARY | SCROLL | SCROLL | SCROLL | |
| Brand | GMCC | Shanghai-Hitachi | PANASONIC | Danfoss | Danfoss | ||
| Indoor air flow (Hi/Mi/Lo) | m3/h | 1310/1119/923 | 2579/2276/2010 | 1723/1478/1053 | 5100 | 6375 | |
| ESP | Rated | Pa | 25 | 50 | 37 | 100 | 150 |
| Range | Pa | 0-80 | 0-160 | 0-100 | |||
| Sound level (sound pressure) | dB(A) | 43/34/31 | 54.2/48.5 | 52/46/44 | 56 | 79 | |
| Indoor unit | Dimension(W*D*H) | mm | 1100x774x249 | 1200x874x300 | 1100x774x249 | 1,452×462×797 | 1,988×669×906 |
| Packing (W*D*H) | mm | 1305x805x305 | 1405x915x355 | 1305x805x305 | 1,555×500×875 | 2,095×800×964 | |
| Net/Gross weight | Kg | 30.8/37.7 | 46.3/55.5 | 32.2/39.5 | 97 / 109 | 188 / 220 | |

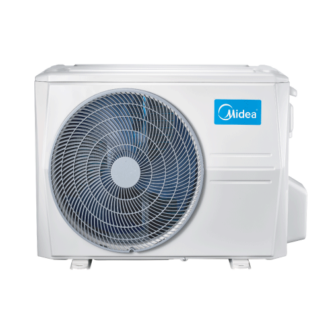

| Outdoor unit | Dimension(WxDxH) | mm | 845x363x702 | 946x410x810 | 900x350x1170 | 1,312×919×658 | 1,260×908×700 |
| Packing(WxDxH) | mm | 965x395x755 | 1090x500x875 | 1032x443x1307 | 1,320×1,060×730 | 1,320×1,060×730 | |
| Net/Gross weight | kg | 49.1/52.3 | 75.9/81.5 | 92.3/104 | 168 / 183 | 199 / 215 | |
| Refrigerant type/Quantity | Type | R410A | R410A | R410A | R410A | R410A | |
| Charged volume | kg | 1.40 | 3.05 | 3.05 | 6 | 7.2 | |
| Controller | Wired control | Wired control | Wired control | Wired control | Wired control | ||
| Operation temperature | ℃ | 17-30 | 17-30 | 17-30 | 17-30 | 17-30 | |
