Note:
| Type | Direct Cool |
| Capacity : | |
Gross Volume | 252 Ltr. |
Net Volume | 238 Ltr. |
| Net Weight | 59 ± 2 Kg |
| Gross Weight | 66 ± 2 Kg |
| Performance : | |
Climatic Type (SN, N, ST, T) | N~ST |
Rated Voltage/ Hz | 220 ~ 240/ 50 |
| Compressor Input Power (Watt) | V 06.01-124 V 07.01-109 V 07.02-109 V 07.03-109 V 08.01-127 |
| Compressor Type | RSCR |
| Energy Rating | No |
Cooling Effect | Freezer Cabinet Less than -18℃ Refrigerator Cabinet 0℃ to +5℃ |
| General Features : | |
Temperature Control (Electronic/ Mechanical) | Mechanical |
Defrosting (Automatic/ Manual) | Manual |
Handle (Recessed/ Grip) | Recessed/ Grip |
Lock | Yes |
Refrigerant | R600a |
| Thermostat | RoHS Certified |
Capillary | Copper |
Polyurethane foam blowing agent | Cyclopentene [Eco-friendly (100% CFC & HCFC Free) Green Technology] |
| Recommended voltage stabilizer capacity | V 06.01-Low Voltage(130~260V) For V 06.01- Wide Voltage Range (130Vac - 260Vac). Voltage stabilizer is not required. In case of voltages beyond this range, 1000VA is recommended. V 07.01,V 07.02,V 07.03-Low Voltage(140~260V) For V07.01, V 07.02,V 07.03 - Wide Voltage Range (140Vac - 260Vac). Voltage stabilizer is not required. In case of voltages beyond this range, 1000VA is recommended V 08.01-Low Voltage(150~260V) For V 08.01 - Wide Voltage Range (150Vac - 260Vac). Voltage stabilizer is not required. In case of voltages beyond this range, 1000VA is recommended. |

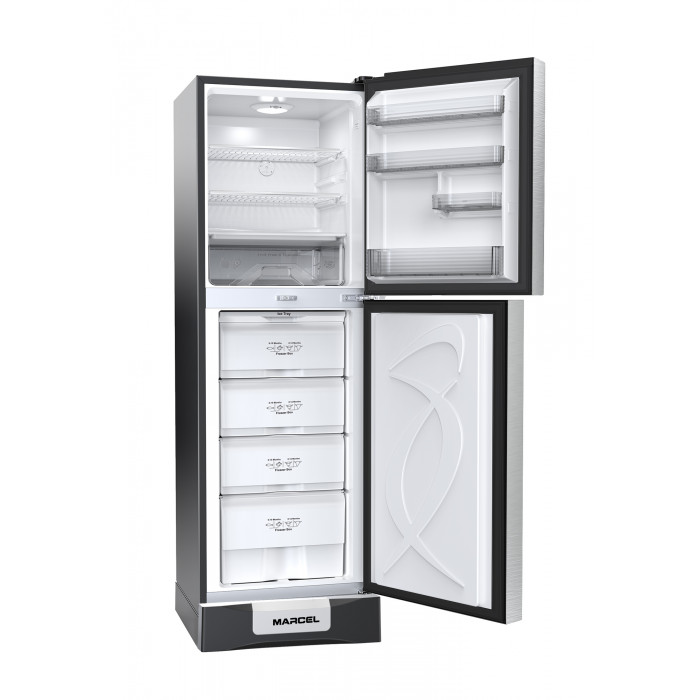

| Refrigerator Compartment : | |
Shelf (Material/ No.) | Wire/2 |
Door Basket | GPPS/4 |
Interior Lamp | Yes |
Vegetable Crisper | Yes |
Vegetable Crisper Cover | Yes |
Egg Tray | Yes |
| Freezer Compartment : | |
Shelf (Material/ No.) | Wire/3 |
Drawer | HIPS/5 |
| Net Dimensions : | |
Width/mm | 555 mm |
Depth/mm | 630 mm |
Height/mm | 1720 mm |
| Packaging : | |
Width/mm | 580 mm |
Depth/mm | 645 mm |
Height/mm | 1765 mm |
| Loading Capacity- 40HQ/ 40Ft/ 20Ft | 98/ 72/ 36 |
